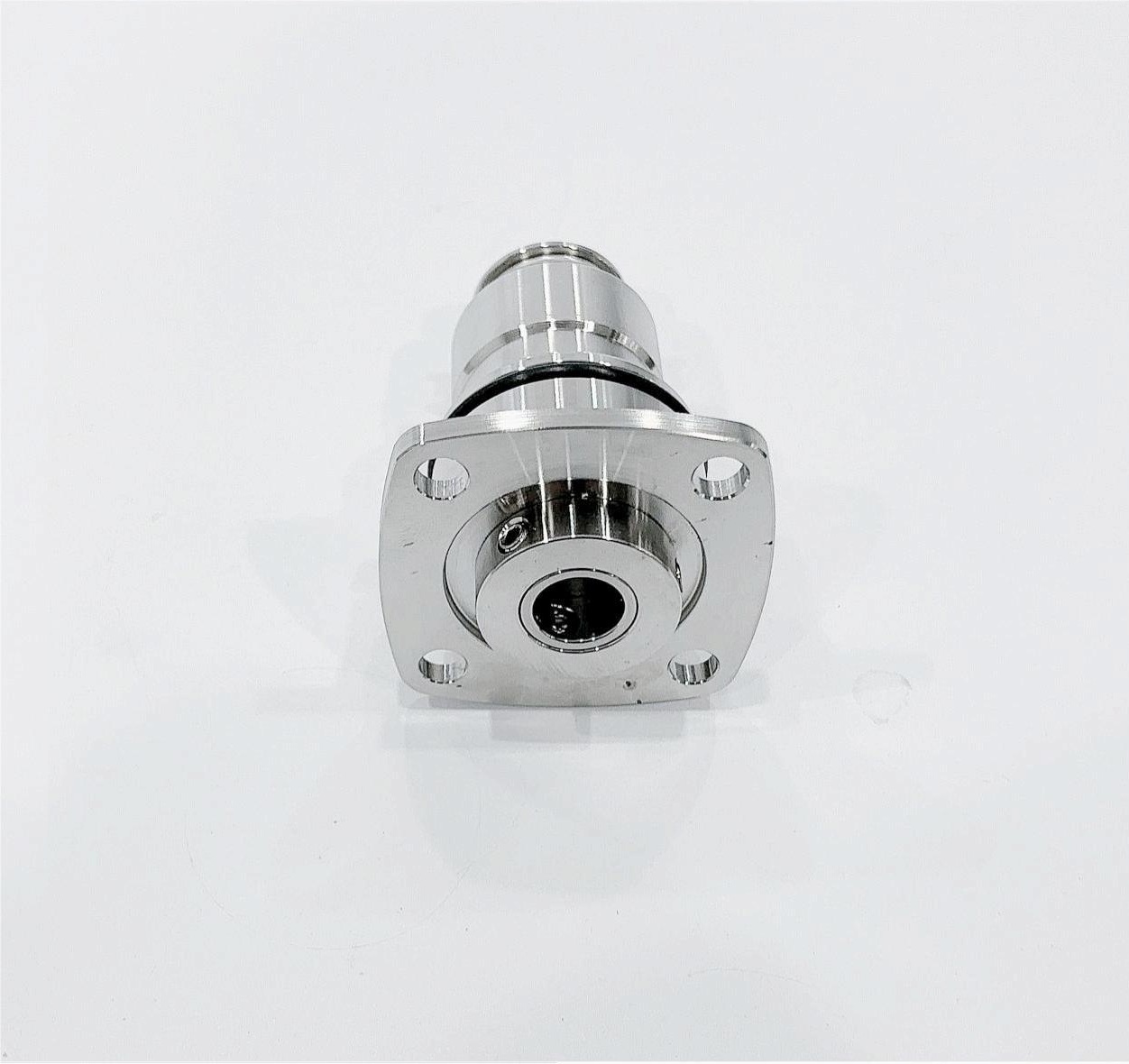

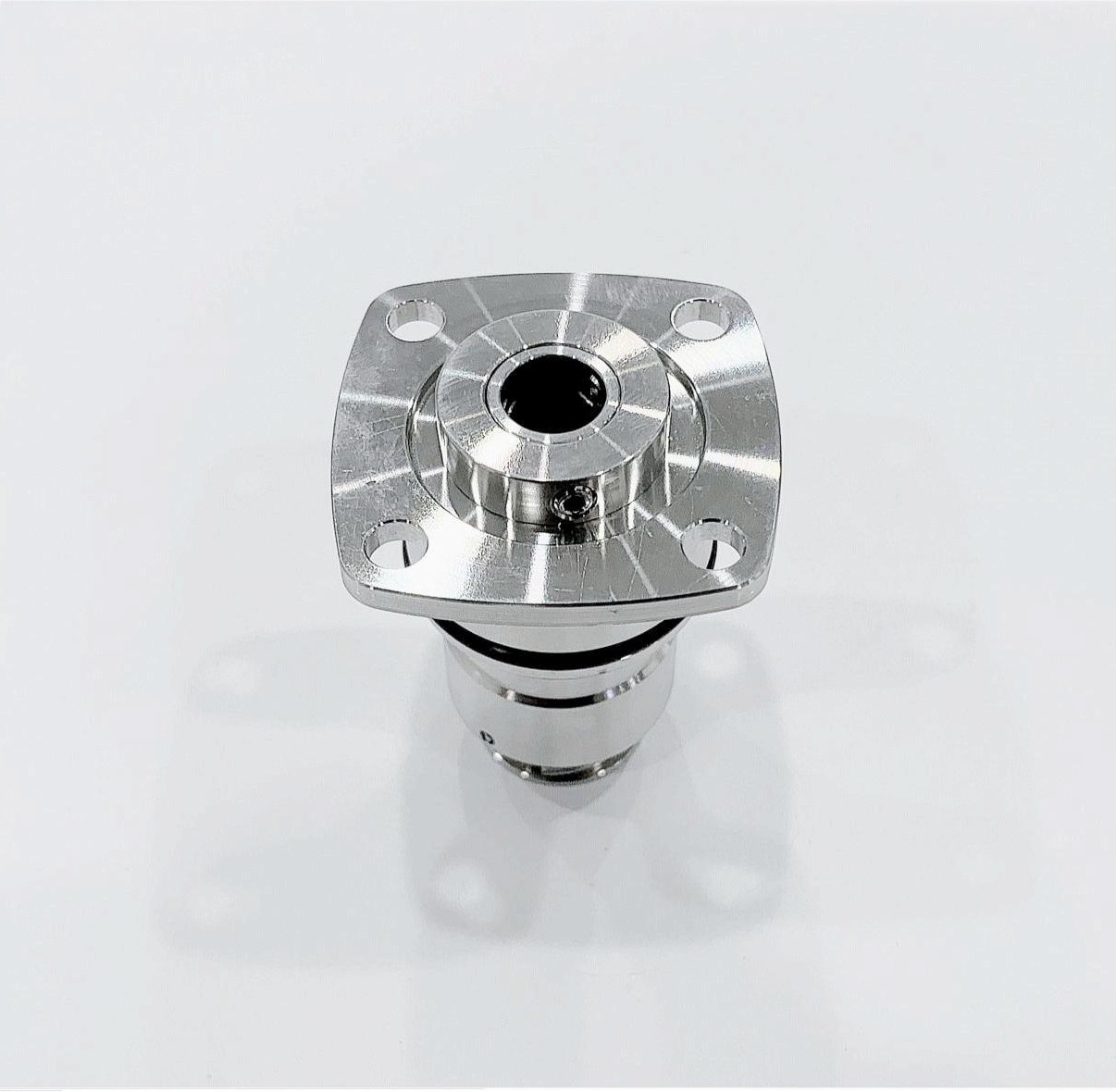

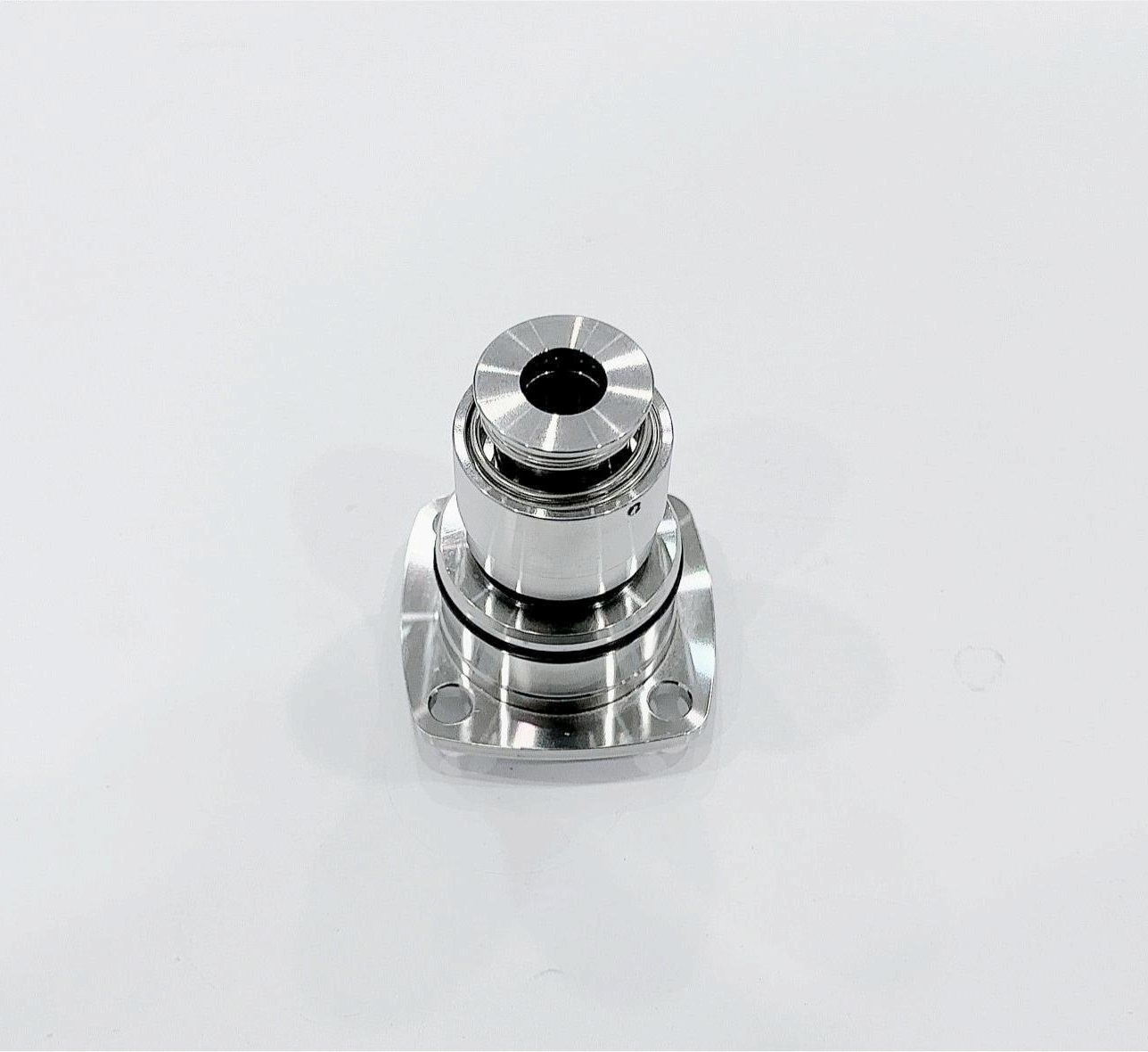

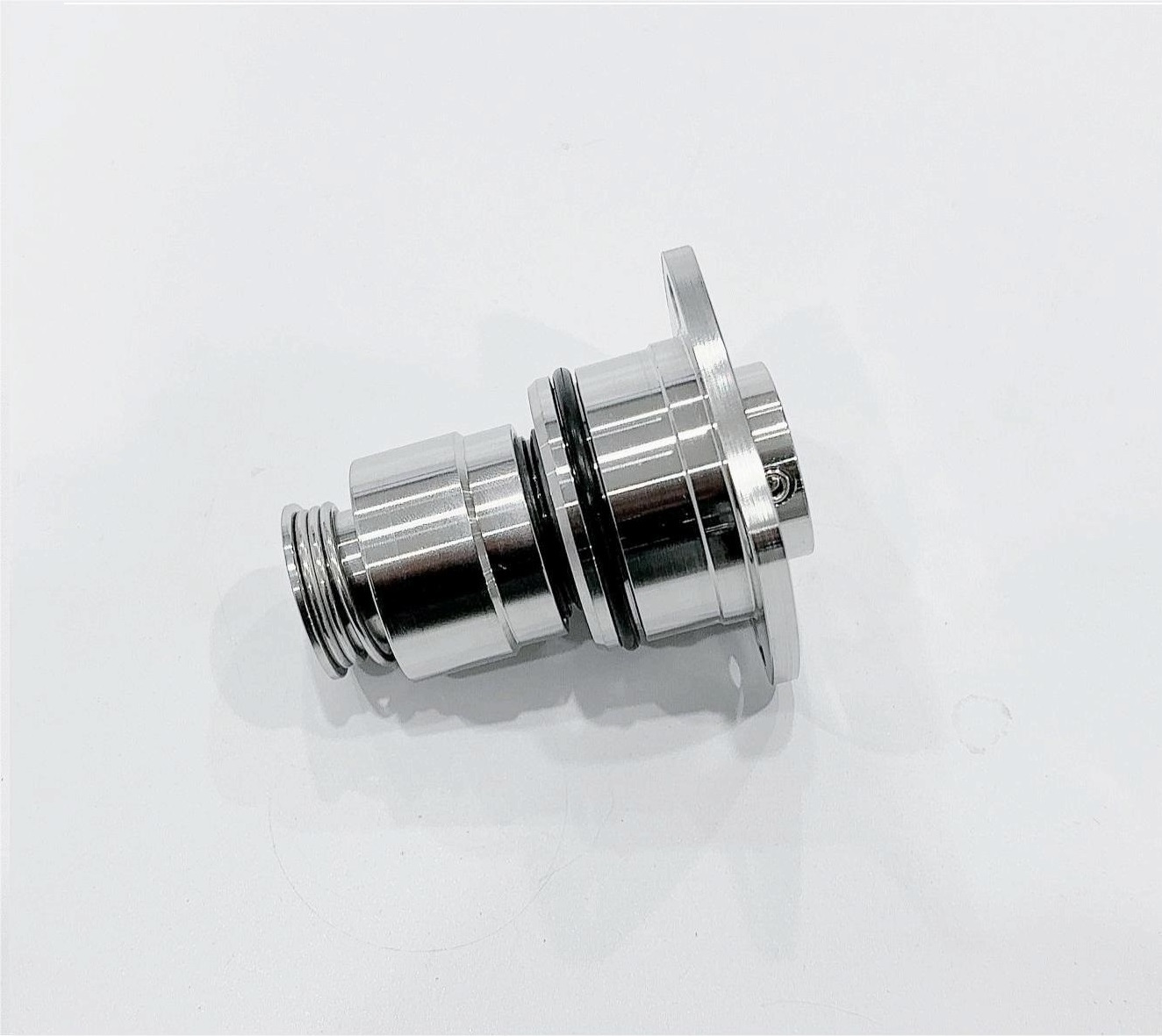

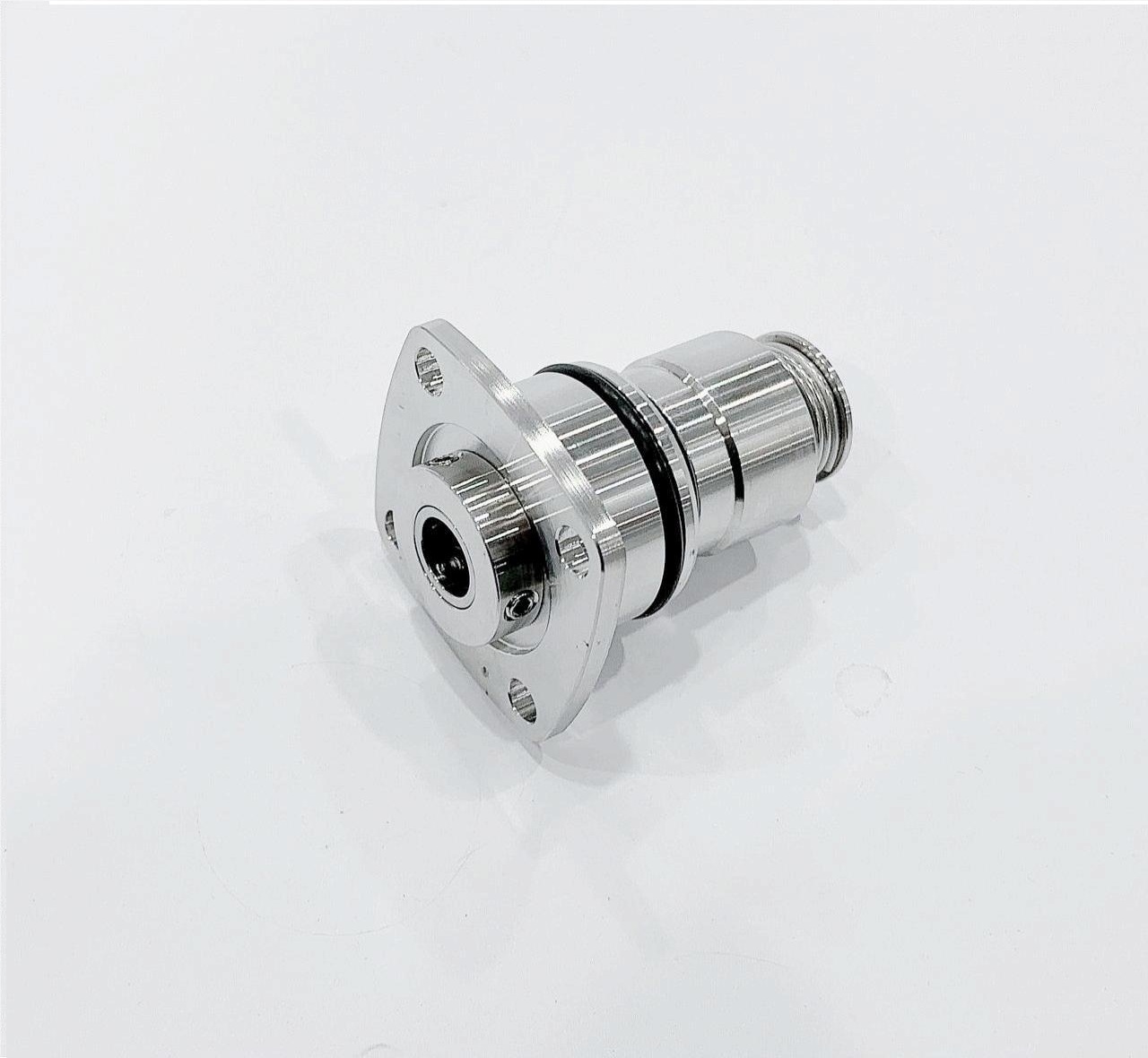

30MM Metal Körüklü Mekanik Salmastra 290 Elastomer Körüklü Salmastra
İlgili kişi : Davis
Naber : +8618130083767
| Min sipariş miktarı : | Yüksek Frekans | Fiyat : | Negotiated |
|---|---|---|---|
| Ambalaj bilgileri : | gereği olarak kutu | Teslim süresi : | 20-30 gün |
| Ödeme koşulları : | T/T, Western Union, L/C | Yetenek temini : | 10000 adet/ay |
| Menşe yeri: | Çin yapımı | Marka adı: | JR |
|---|---|---|---|
| Sertifika: | iso9001 | Model numarası: | EB-B 12mm 16mm 20mm |
|
Detay Bilgi |
|||
| Malzeme: | SIC SIC FKM | İşlev: | Yağ Pompası, Su Pompası için |
|---|---|---|---|
| Taşıma Paketi: | Kutu | GTİP Kodu: | 848420090 |
| Sertifika: | ISO9001 | Tip: | mekanik salmastra |
| Standart veya Standing: | Standart | Boyut: | Mekanik Salmastra EB-A 12mm 16mm 20mm |
| Şartname: | Mekanik Salmastra EB-A 12mm 16mm 20mm | Ürün adı: | Metal alt mekanik mühürleme |
Ürün Açıklaması
Operational Conditions:
Materials:
Performance Capabilities
|
Temperature
|
-20℃ to 200℃, dependent on the elastomer
|
|
Pressure
|
Up to 21 bar
|
|
Speed
|
Up to 23 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
EB-A 12mm 16mm 20mm
|
|
Brand
|
JR
|
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
Ceramic, SiC, TC
|
|
Elastomer
|
NBR, EPDM, FKM etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
|
Idividual Packing
|
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
|
We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,
All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
