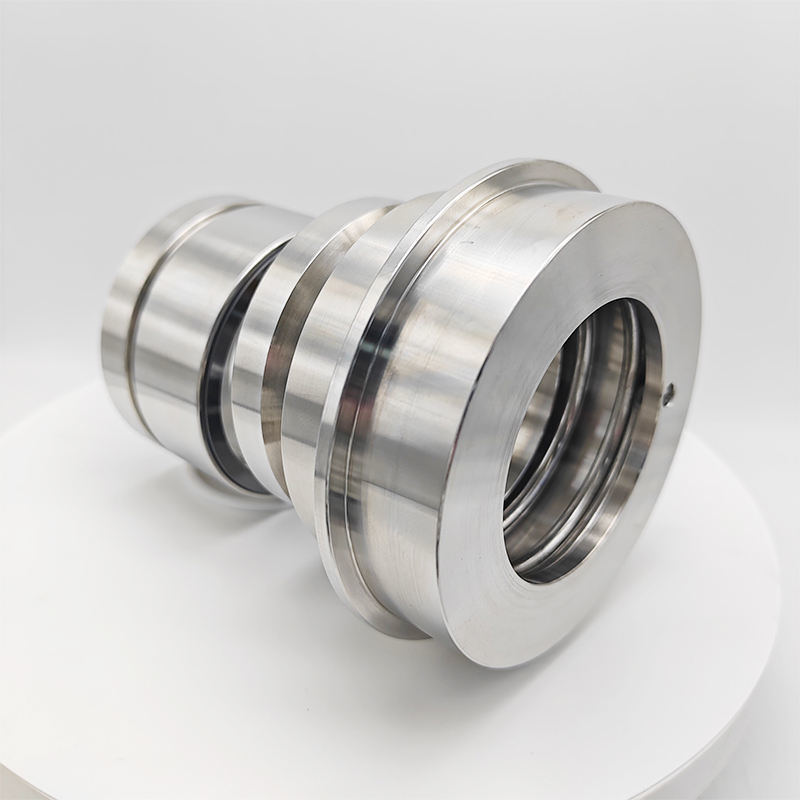

Mechanical Seal TB1, TB1F & TB2 for Sulzer Process Pumps for Mixer SIC/SIC/PTFE/304
Mechanical Seal TB1, TB1F & TB2 for Sulzer Process Pumps for Mixer SIC/SIC/PTFE/304 Mechanical Seal TB1, TB1F & TB2 for Sulzer Process Pumps for Mixer SIC/SIC/PTFE/304 Mechanical Seal TB1, TB1F & TB2 for Sulzer Process Pumps for Mixer SIC/SIC/PTFE/304 Mechanical Seal TB1, TB1F & TB2 for Sulzer Process Pumps for Mixer SIC/SIC/PTFE/304 Mechanical Seal TB1, TB1F & TB2 for Sulzer Process Pumps for Mixer SIC/SIC/PTFE/304
Şimdi başvurun

Mechanical Seal TB1, TB1F & TB2 for Sulzer Process Pumps for Mixer SIC/SIC/PTFE/304

Min sipariş miktarı : Yüksek Frekans Fiyat : Negotiated
Ambalaj bilgileri : gereği olarak kutu Teslim süresi : 20-30 gün
Ödeme koşulları : T/T, Western Union, L/C Yetenek temini : 10000 adet/ay
Menşe yeri: Çin yapımı Marka adı: JR
Sertifika: iso9001 Model numarası: TB1, TB1F ve TB2

Detay Bilgi
Malzeme: SIC SIC FKM İşlev: Yağ Pompası, Su Pompası için
Taşıma Paketi: Kutu GTİP Kodu: 848420090
Sertifika: ISO9001 Tip: mekanik salmastra
Standart veya Standing: Standart Boyut: Mekanik Salmastra TB1, TB1F ve TB2
Şartname: Mekanik Salmastra TB1, TB1F ve TB2 Ürün adı: Metal alt mekanik mühürleme

Ürün Açıklaması

Mechanical Seal TB1, TB1F & TB2 for Sulzer Process Pumps for Mixer SIC/SIC/PTFE/304



Operational Conditions:

  1. 30mm, 40mm, 50mm, 60mm, 80mm, 85mm (special size), and 90mm
  2. Temperature: -20ºC to +180ºC
  3. Pressure: ≤2.5MPa
  4. Speed: ≤15m/s

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids
  • 5.Structure: TB1 and TB1F are single-end faces, while TB2 is a double-end face. Pressure: Medium pressure. Speed: Normal speed. Temperature: Room temperature. Characteristics: Wear-resistant and corrosion-resistant. Standard: Enterprise standard. Model: TB1, TB1F, and TB2. Balance: Balanced type
  • TB1, TB1F, and TB2 compensation ring pre-assembled mechanical seals are used to match Sulzer AHLSTAR pumps.
    Structural Features: The rotating ring component of this series of mechanical seals is pre-assembled and directly mounted on the rotating shaft without using a shaft sleeve, maximizing reliability. This single-end face model of mechanical seal is designed to adapt to any sudden changes in sealing medium pressure, and the sealing end face remains tightly closed under these changes. The dual-seal design ensures that the sealing end face remains tightly closed even in the event of sudden changes in both the pressure of the sealing liquid and the pumping medium. In addition, the sealing end face does not become loosely closed under vacuum conditions. The design structure of this mechanical seal is simple, and its cost is relatively lower compared to fully assembled mechanical seals.
    Implementation standard: enterprise standard
    Application areas: TB1, TB1F, and TB2 mechanical seals are designed to replace standard packing seals for use with standard shaft sizes that do not require the use of shaft sleeves. They can be used with Sulzer's AHLSTAR process pumps, The original design purpose of this mechanical seal was for Sulzer to replace the long-used John Crane Safematic SE1-AP and SE2-AP series mechanical seals, in order to save procurement costs.

Performance Capabilities

Parameter Item TB1 TB1F TB2
Structural Form Single-faced Single-faced (with flush) Double-faced
Maximum Working Pressure 16 bar / 232 psi 16 bar / 232 psi (some data support 25 bar) 16 bar / 232 psi
Maximum Working Temperature 125°C / 257°F 140°C / 284°F (internal or external flush required) 180°C / 355°F
Maximum Linear Speed 25 m/s / 82 ft/s 25 m/s / 82 ft/s 25 m/s / 82 ft/s
Shaft Diameter Range 30, 40, 50, 60, 80, 85 (special size), 90 mm Same as TB1 Same as TB1
Seal Face Material Pairing SiC/SiC or C/SiC SiC/SiC or C/SiC SiC/SiC or SiC/SiC-C/SiC
Auxiliary Seal Material EPDM / FKM / PTFE EPDM / FKM / PTFE EPDM / FKM
Spring Material AISI316 / HC276 AISI316 / HC276 AISI316
Metal Part Material SS316L / Duplex Steel SS316L / Duplex Steel SS316L
Cooling/Lubrication Method Self-lubrication by medium (through impeller balance hole) Internal or external flush circulation fluid External sealing fluid system (Plan 53)
Suitable Working Conditions Clean or slightly contaminated liquids, viscous media at normal temperature High-temperature or easily fouling media (flush required) High-temperature, high-pressure, toxic or hazardous media
Typical Application Pump Types Sulzer AHLSTAR A, APP, pumps Same as TB1, for higher temperature conditions Same as TB1, for more severe sealing requirements
Replacement Target Replace John Crane SE1-AP/SE2-AP and original TB1 Same as TB1, optimized for high-temperature adaptability Provide a higher safety level double-seal solution

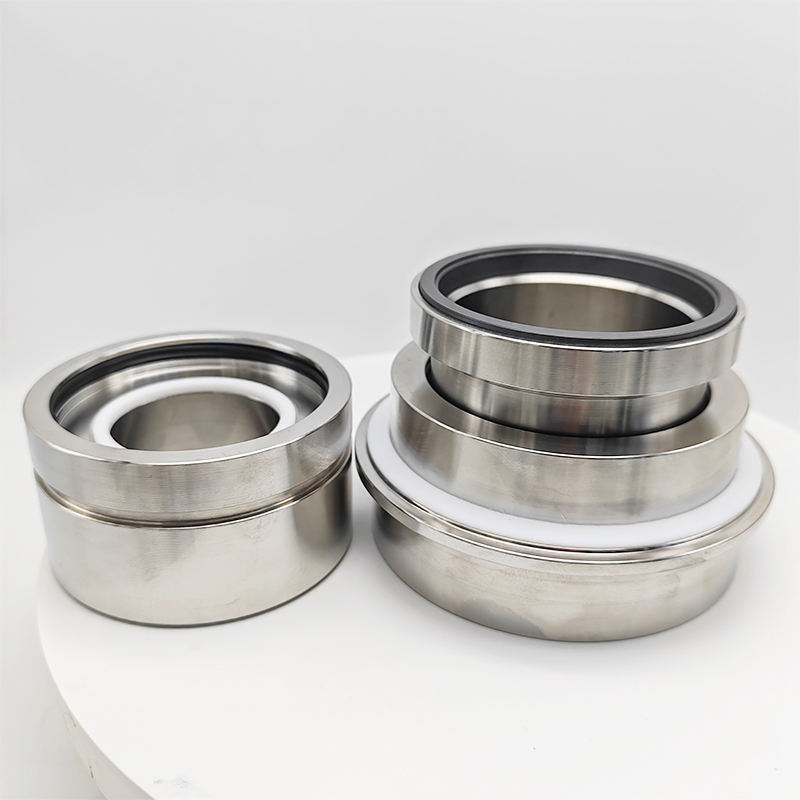

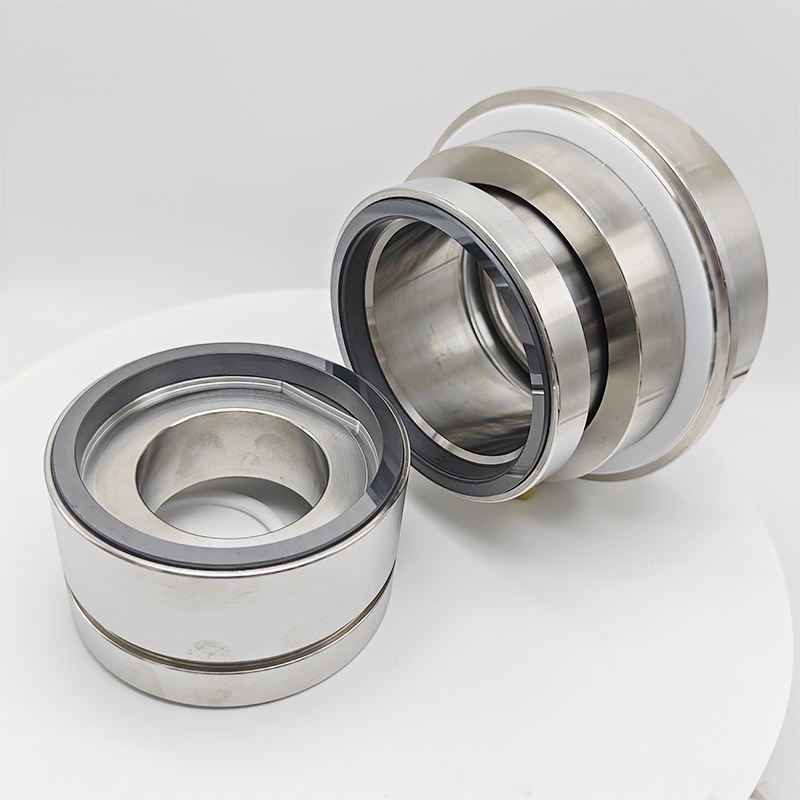

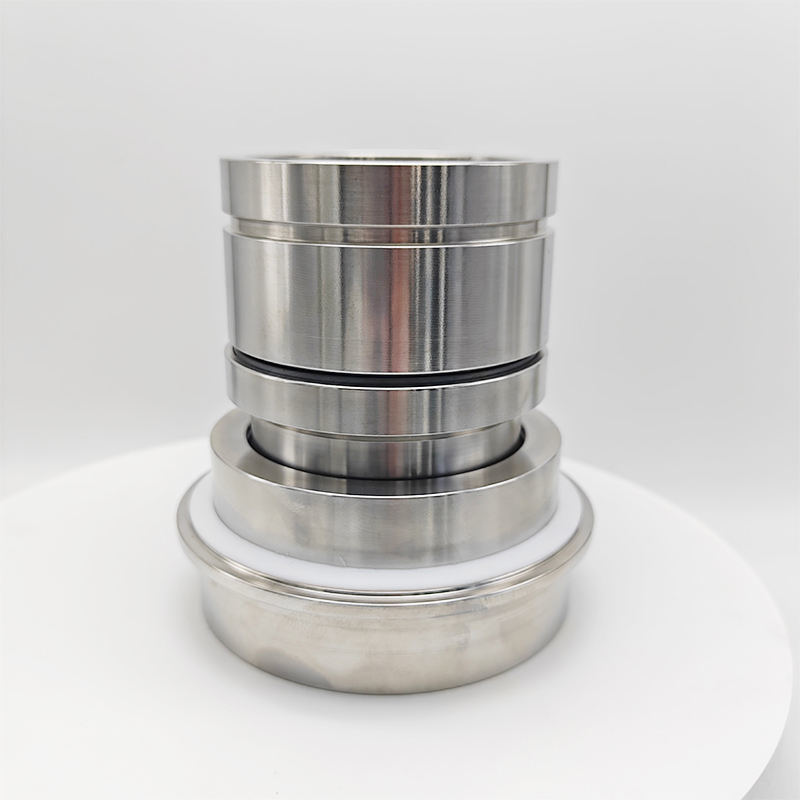

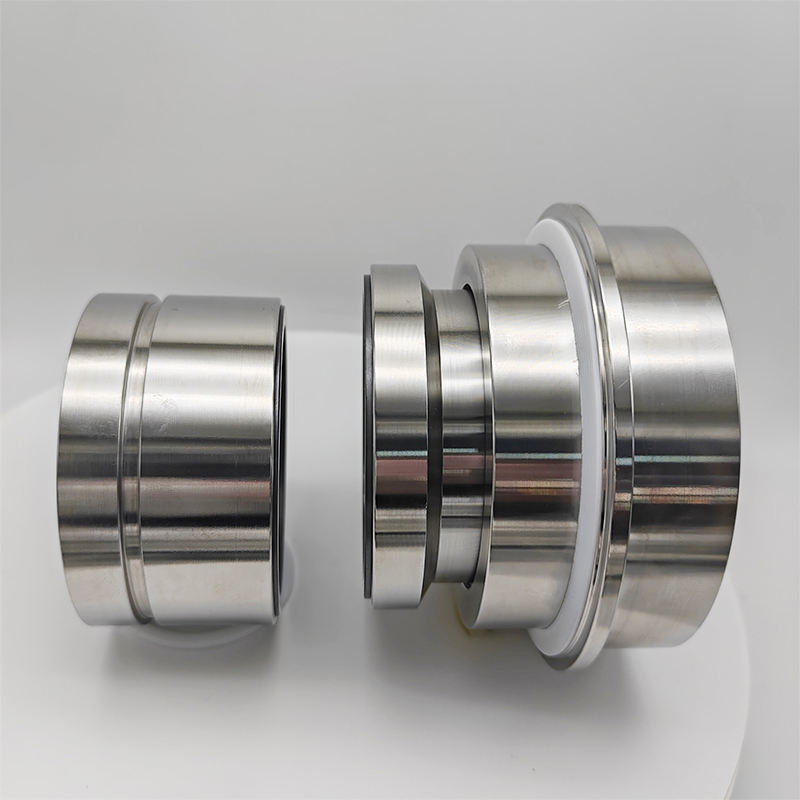

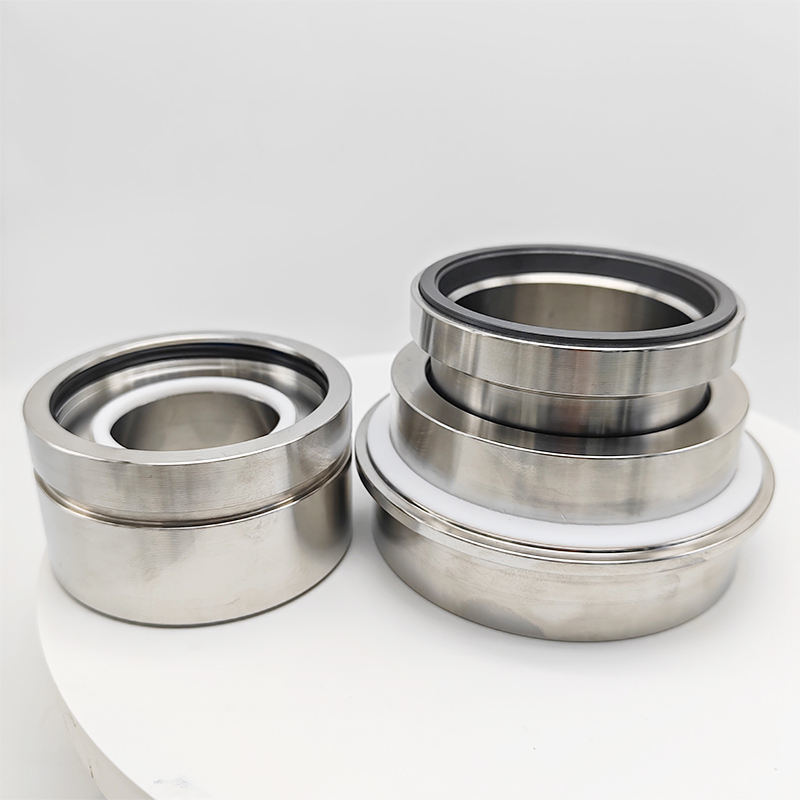

Mechanical Seal TB1, TB1F & TB2 for Sulzer Process Pumps for Mixer SIC/SIC/PTFE/304 0Mechanical Seal TB1, TB1F & TB2 for Sulzer Process Pumps for Mixer SIC/SIC/PTFE/304 1Mechanical Seal TB1, TB1F & TB2 for Sulzer Process Pumps for Mixer SIC/SIC/PTFE/304 2Mechanical Seal TB1, TB1F & TB2 for Sulzer Process Pumps for Mixer SIC/SIC/PTFE/304 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
