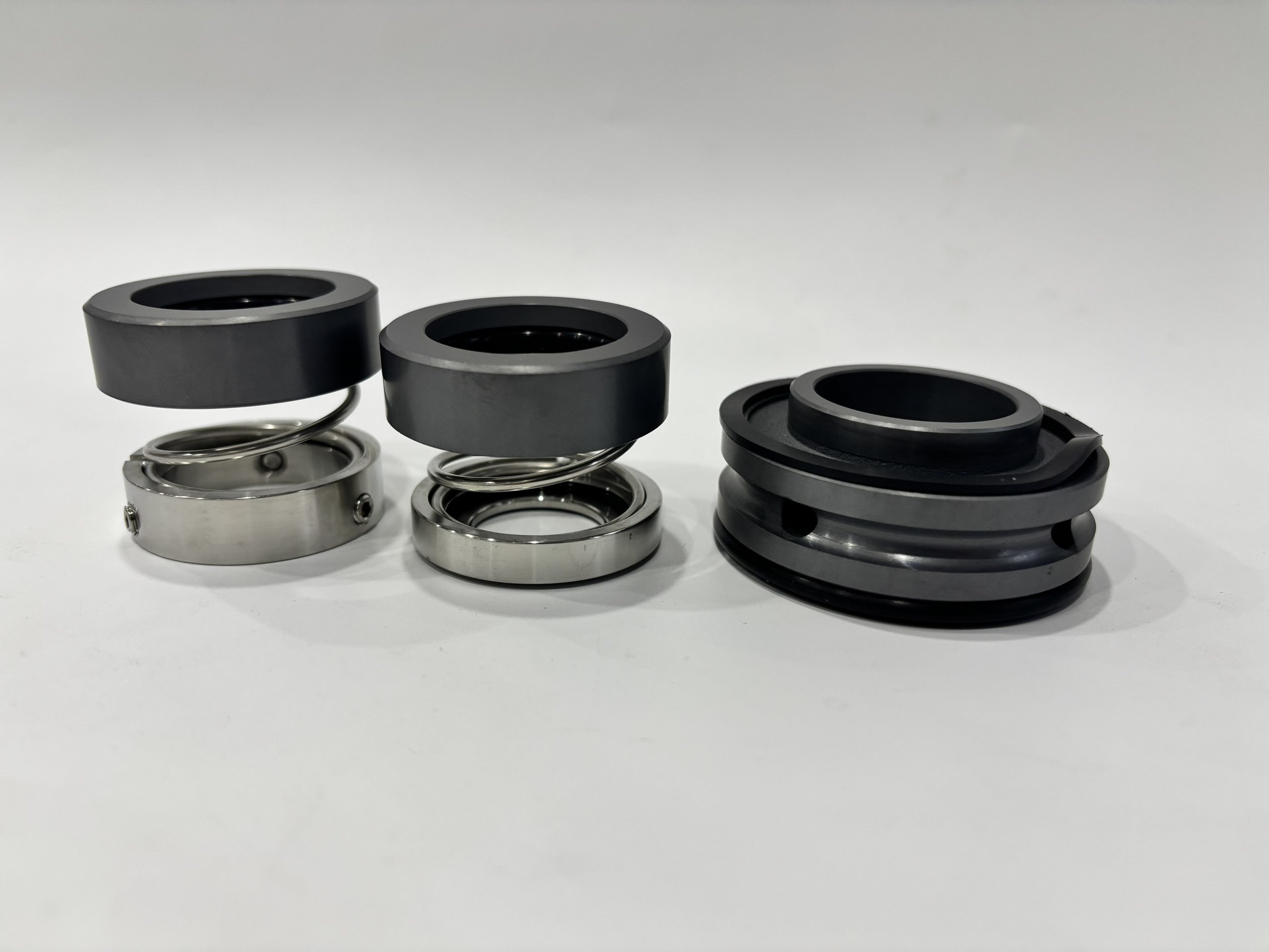

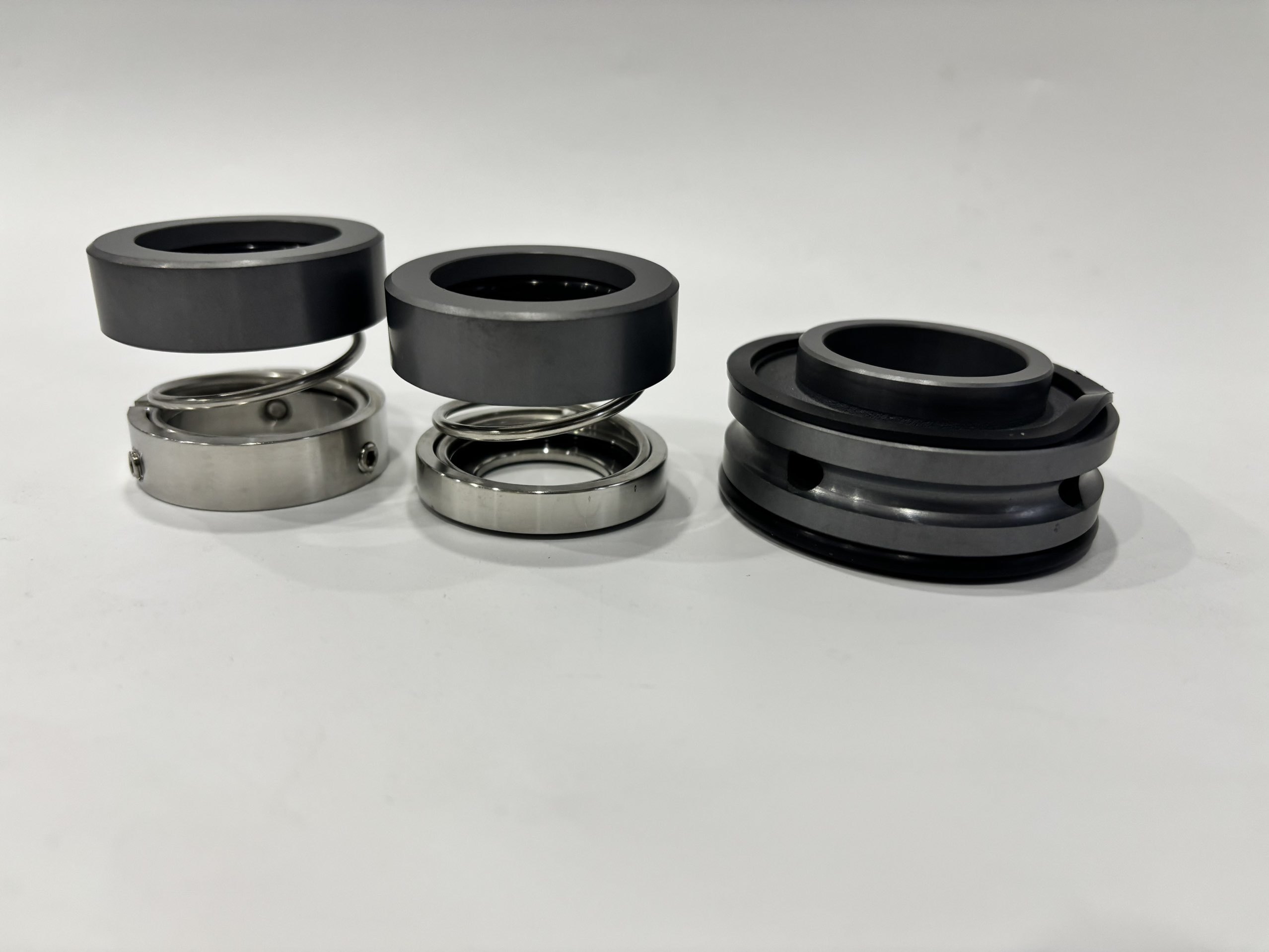

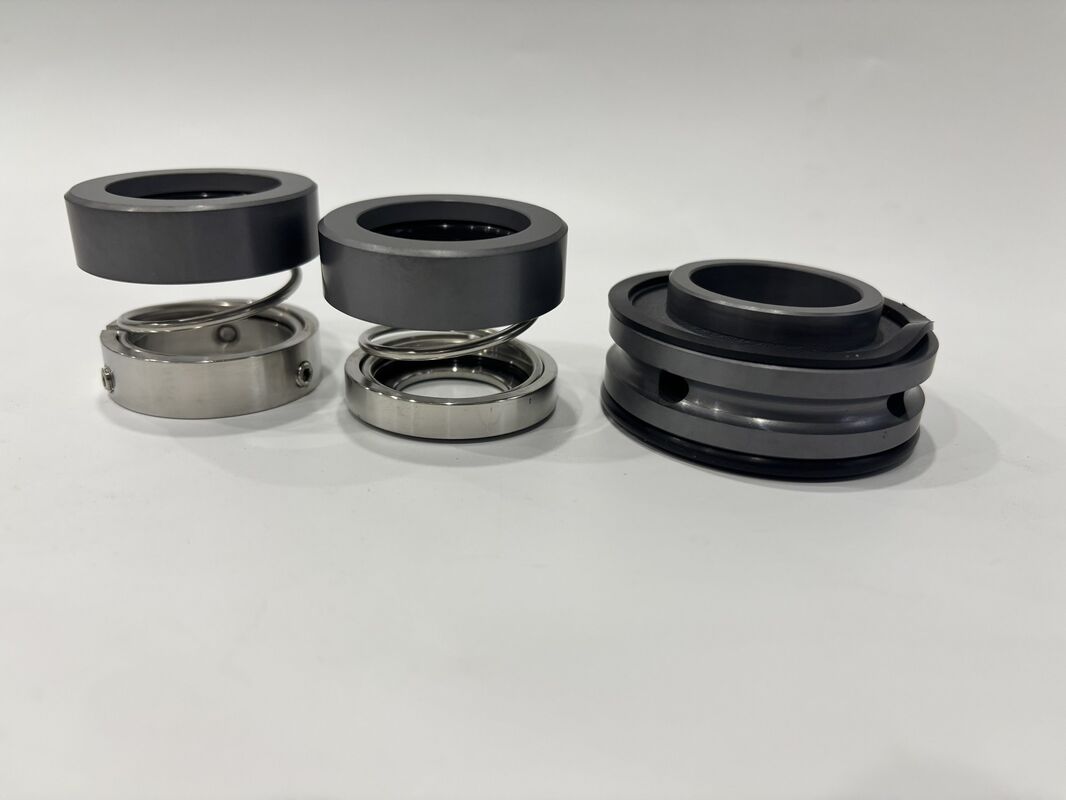

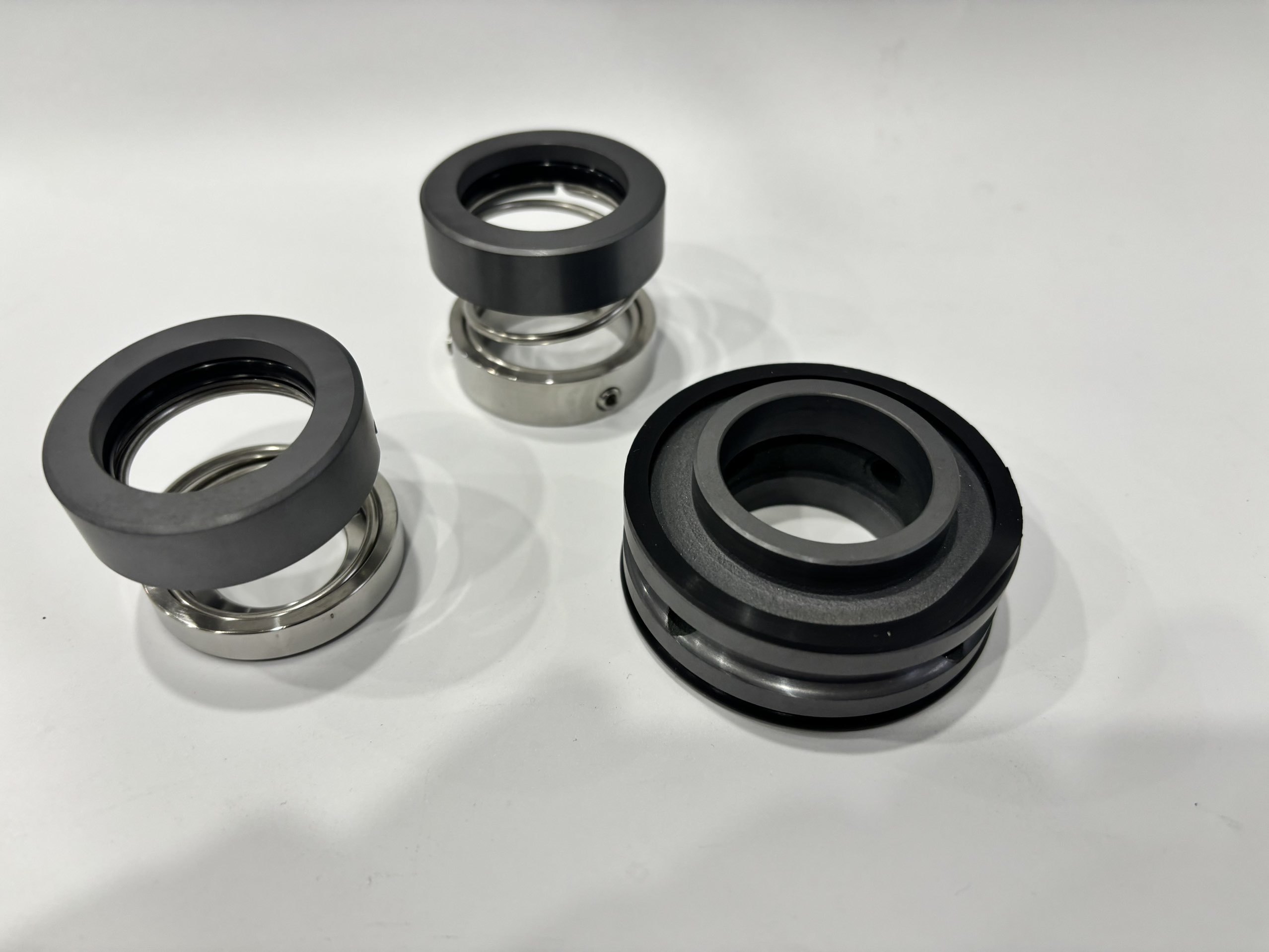

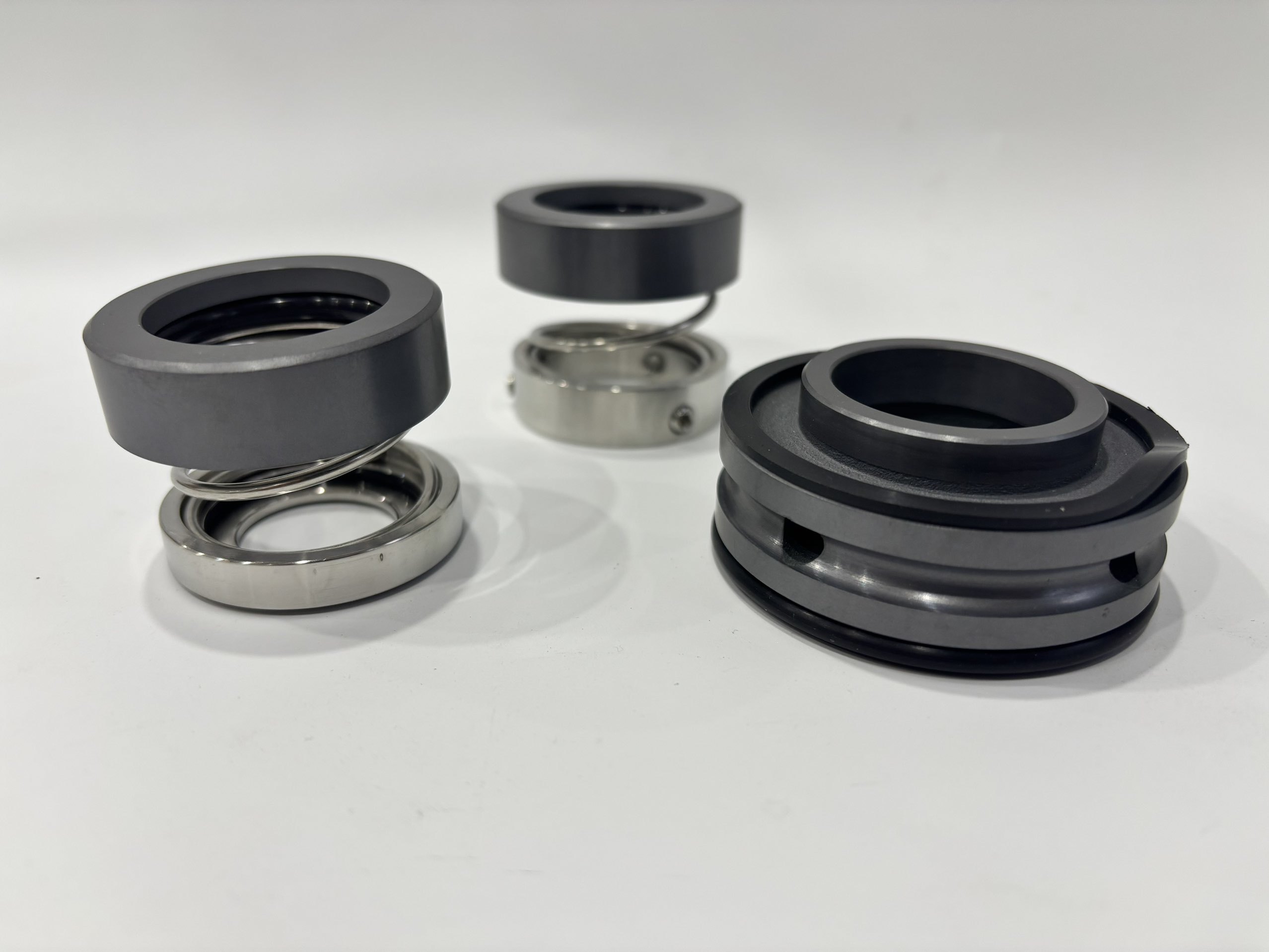

30MM Metal Körüklü Mekanik Salmastra 290 Elastomer Körüklü Salmastra
İlgili kişi : Davis
Naber : +8618130083767
| Min sipariş miktarı : | Mercedes Benz E-Serisi | Fiyat : | Negotiated |
|---|---|---|---|
| Ambalaj bilgileri : | gereği olarak kutu | Teslim süresi : | 20-30 gün |
| Ödeme koşulları : | T/T, Western Union, L/C | Yetenek temini : | 1000pc/ay |
| Menşe yeri: | Çin yapımı | Marka adı: | JR |
|---|---|---|---|
| Sertifika: | iso9001 | Model numarası: | fristam çift 30mm |
|
Detay Bilgi |
|||
| Malzeme: | SIC SIC FKM | İşlev: | Yağ Pompası, Su Pompası için |
|---|---|---|---|
| Taşıma Paketi: | Kutu | GTİP Kodu: | 848420090 |
| Şartname: | Fristam Pompa Salmastrası Aesseal T01F mekanik salmastra | Sertifika: | ISO9001 |
| Tip: | Fristam Pompa Contası Aesseal fristam çift 30mm | Standart veya Standing: | Standart |
| Ürün adı: | Fristam Pompa Contası Aesseal fristam çift 30mm | Başvuru: | mekanik conta Fristam Pompa Contası Aesseal fristam çift 30mm |
Ürün Açıklaması
Description:
Operational Conditions:
Materials:
Performance Capabilities
|
Temperature
|
-30℃ to 200℃, dependent on the elastomer
|
|
Pressure
|
Up to 10 bar
|
|
Speed
|
Up to 15 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
30mm
|
|
Brand
|
JR
|
|
Face
|
Carbon, SiC
|
|
Seat
|
SUS304,SUS316, SIC, TC
|
|
Elastomer
|
NBR, EPDM, FKM etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
|
Idividual Packing
|
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
|
they are as replacements for Fristam pump seals, for Food, Dairy and Beverage Processing.
Equivalent to:
Vulcan seal type 2201/1,
Vulcan seal type 2201/2,
Vulcan seal type 2208/12,
Vulcan seal type 2208/12B,
Vulcan seal type 2206/61,
Vulcan seal type 2205/6,
Vulcan seal type 2209/1,
Vulcan seal type 2209/2,
Vulcan seal type 2209/3
Aesseal T01F
A wide range of components and complete Seal Sets, offered in FDA specified complaint materials, to directly replace the O.E.M. Seal components. Further special designs to suit specific pumps models FPX, FT, FK, FKL50, FL, FLF.
We also have replacement seals for other major sanitary pumps such as APV, Fristam, Lowara, Inoxpa, etc.
![]()
![]()
![]()
![]()
We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,
All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
|
d (mm) |
d0
|
D
|
L1
|
L2
|
L3
|
|
22
|
18
|
50
|
22
|
22.5
|
20
|
