Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series
Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series
Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series
Şimdi başvurun

Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series

Min sipariş miktarı : 5 adet Fiyat : Negotiated
Ambalaj bilgileri : gereği olarak kutu Teslim süresi : 20-30 GÜN
Ödeme koşulları : T/T, Western Union, L/C Yetenek temini : 100000PC/Ay
Menşe yeri: Çin yapımı Marka adı: JR
Sertifika: ISO9001 Model numarası: LKH(P07-31.7)

Detay Bilgi
Malzeme: SIC SIC FKM ARABA CER NBR İşlev: Yağ Pompası, Su Pompası için
Taşıma Paketi: Kutu Hs kodu: 848420090
Şartname: LKH(P07-31.7) Sertifika: ISO9001
Tip: FBD için Standart: Standart
Stil: Sıhhi Pompa için AES-P07 Mekanik Salmastralara Eşdeğer Ürün Adı: Sıhhi pompa için AES tipi P07 mekanik Salmastra

Ürün Açıklaması

Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series​



Operational Conditions:

  1. AES type P07 mechanical Seal for sanitary pump with single spring
  2. Equivalent to AES P07
  3. Suitable for water pump mechanical seal pumps CN,EM,FM,GM,LKH,ME,MR
  4. Temperature: -20ºC to +180ºC
  5. Pressure: ≤2.5MPa
  6. Speed: ≤15m/s

Materials:

  • Stationary Ring: CAR,CER,SIC,SSIC
  • Rotary Ring: Q5, Resin Impregnated Carbon Graphite(Furan), SIC
  • Secondary Seal: FKM, NBR,EPDM
  • Spring and Metal Parts: 304/316

Performance Capabilities

LKH(P07-31.7) mechanical seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
10mm to 80mm,
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS304, SS316




1. .it is equivalent to

LKH(P07-31.7)

2.Our seals can replace the original seals.

3.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.

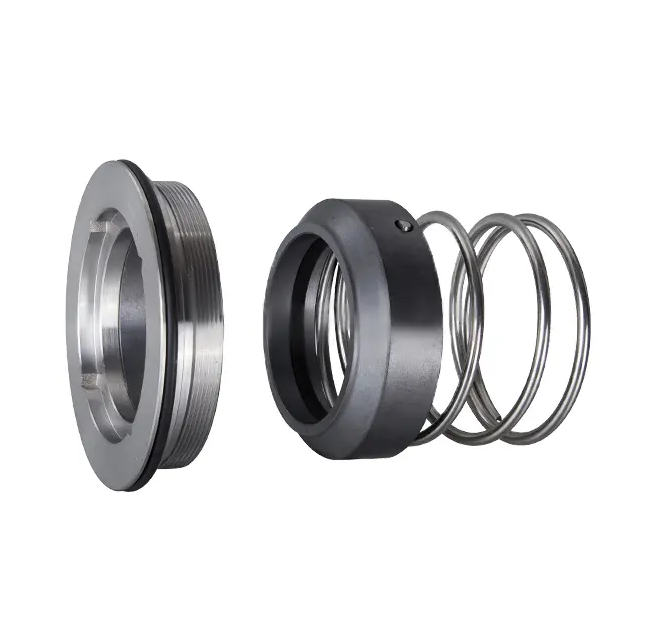

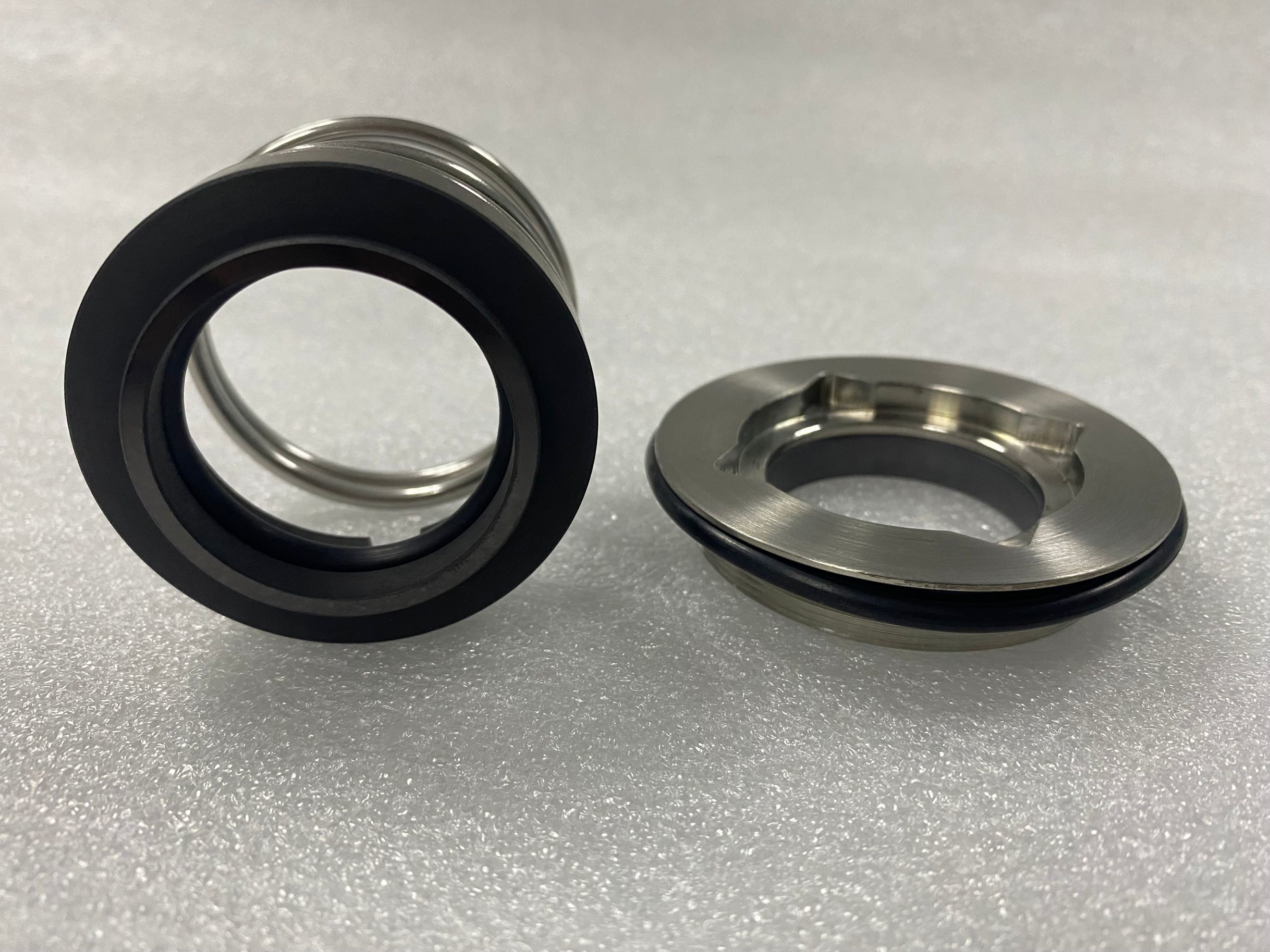

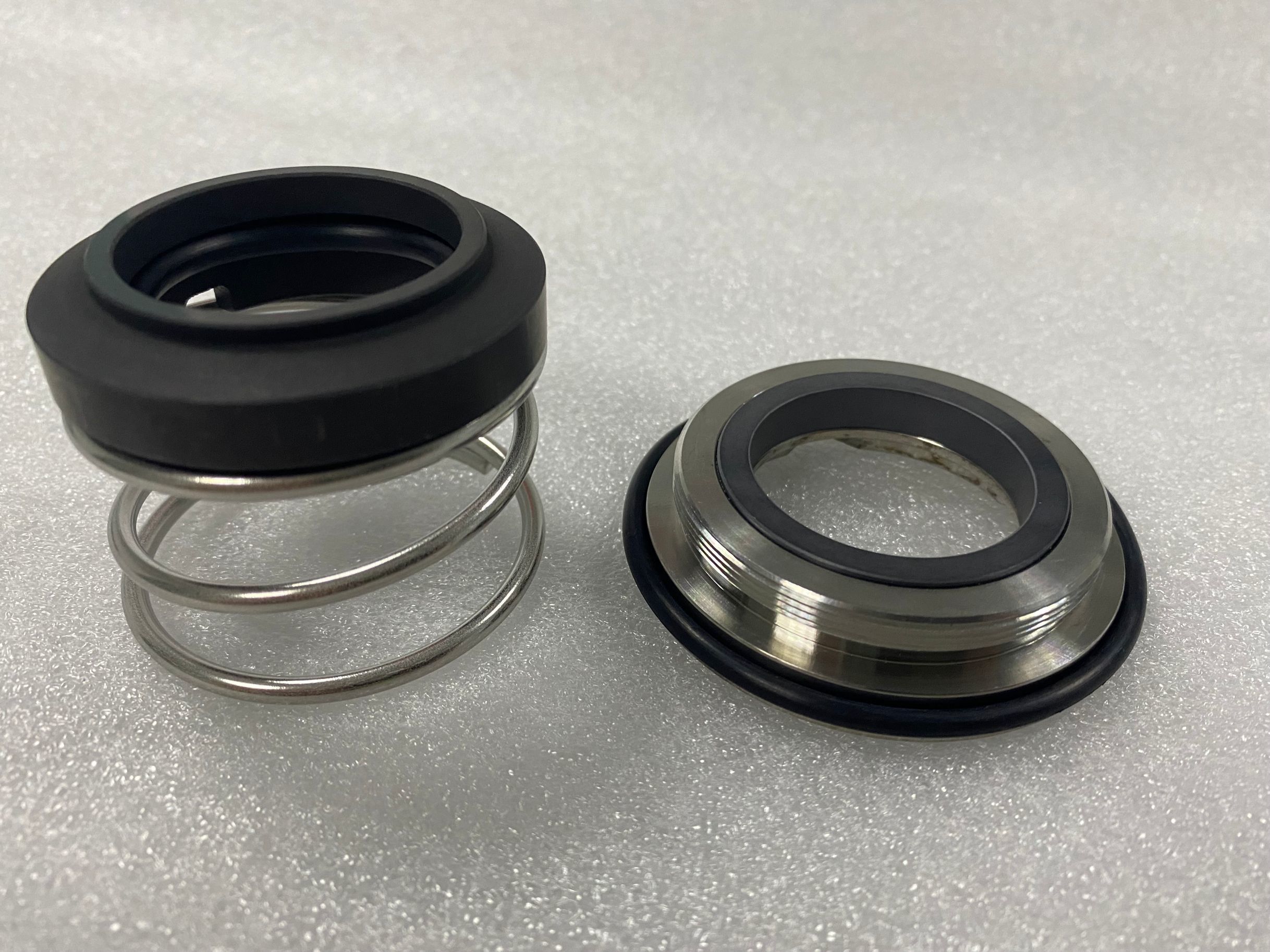

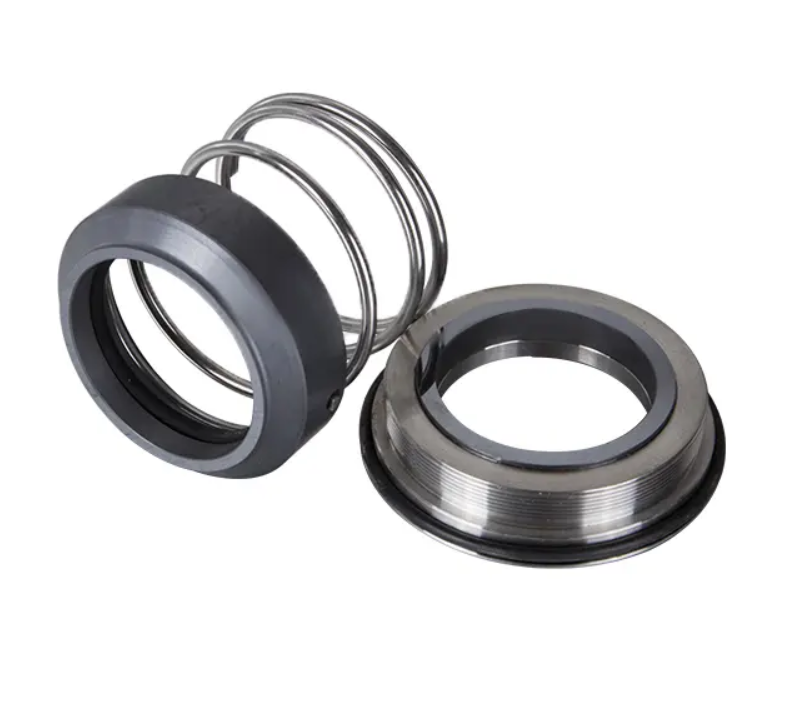

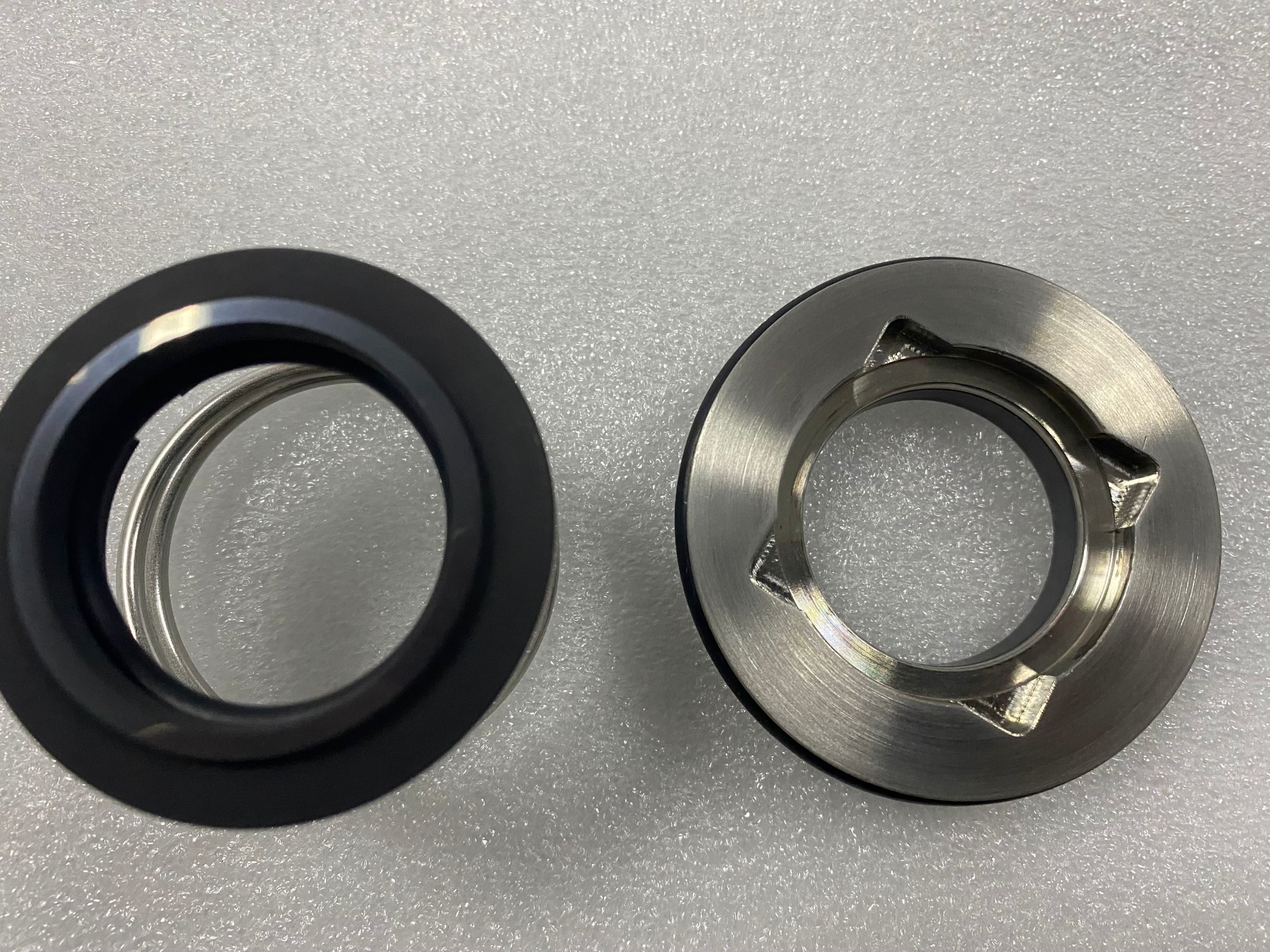

Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series 0

Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series 1

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
